simpeg.utils.model_builder.create_block_in_wholespace#

simpeg.utils.model_builder.create_block_in_wholespace(cell_centers, p0, p1, background_value=0.0, block_value=1.0)[source]#

Construct cell-centered model comprised of a block in a wholespace.

Parameters:

cell_centers(n_cells, dim) numpy.ndarray or discretize.base.BaseMesh: A mesh or its gridded cell center locations
p0(dim) numpy.ndarray: Bottom southwest corner of the block
p1(dim) numpy.ndarray: Top northeast corner of the block
background_valuefloat, optional: Background physical property value.
block_valuefloat, optional: Block physical property value

Returns:

(n_cells) numpy.ndarray: Physical property model defined at the cell centers

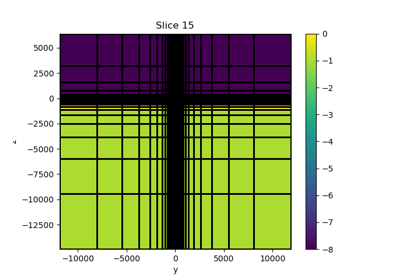

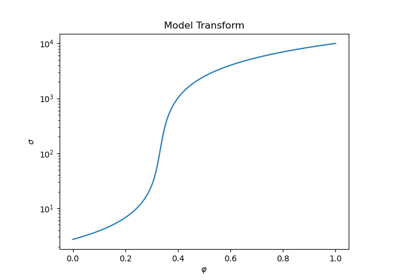

Galleries and Tutorials using `simpeg.utils.model_builder.create_block_in_wholespace`#
