simpeg.utils.plot_1d_layer_model#

simpeg.utils.plot_1d_layer_model(thicknesses, values, z0=0, scale='log', ax=None, plot_elevation=False, show_layers=False, vlim=None, **kwargs)[source]#

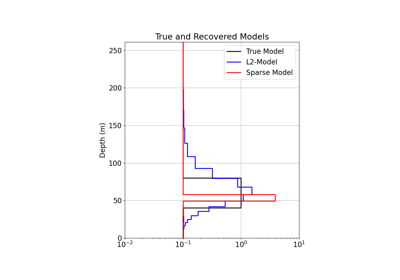

Plot the vertical profile for a 1D layered Earth model.

Parameters:

thicknesseslist or numpy.ndarray of float: A list or numpy.ndarray containing the layer thicknesses from the top layer down
valueslist or numpy.ndarray of float: A list or numpy.ndarray containing the physical property values from the top layer down
z0float: Elevation of the surface
scale: {‘linear’, ‘log’}: Plot physical property values on a linear or log10 scale.
ax: matplotlib.axes.Axes, optional: An axis object for the plot
plot_elevationbool: If False, the yaxis will be the depth. If True, the yaxis is the elevation.
show_layersbool: Plot horizontal lines to denote layers.
vlimtuple, optional: The limits for the x-axis.

Returns:
